Canon Accessories
A Description of Accessories for Canon Rangefinders 1936-1975
the Canon sport finder for action photography mounted on a 1952 Canon IVSB camera
Canon Accessories
blah
The Canon Camera Holder

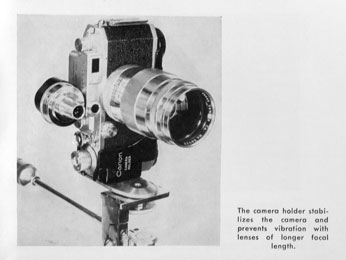

The Canon Camera Holder seems at first glance a somewhat strange accessory. Its function is illustrated below.
It seems from literature that a good quantity of these Canon holders were sold in the 1950s for use on tripods for telephoto photography and for long exposures and other applications not practical for hand-held exposures. Again with most Canon accessories, the Canon Camera Holder came in beautiful, and also practical packaging.

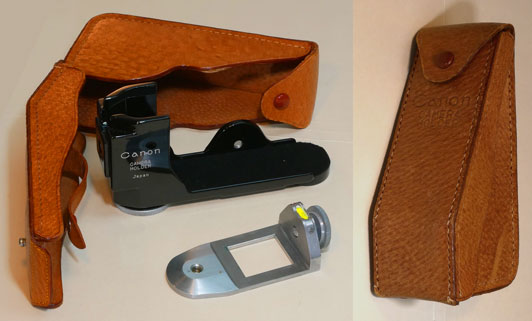

With the black Camera Holder, the chrome steel backet in front contains a spirit level
the spirit level could be monted below the camera holder to determine when the camera was level

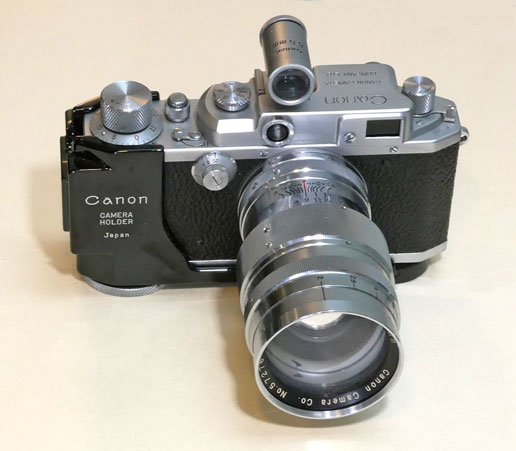

a 1950 Canon IIB with telephoto in a Canon Camera Holder
Canon-Meter
In June 1958, Canon released the Canon VI-L and VI-T. These cameras had a new shutter, featuring also a single shutter speed dial on the camera top - no more split high speed/low speed dials. A very useful accessory for this new single shutter speed dial was the Canon-Meter - a light meter which could be slipped into the accessory shoe and linked directly to the shutter speed dial. The light meter needle would then point to the correct f-stop for the particular shutter speed selected by the photographer. The front of the light meter had a large selenium cell for the light measurement. A small switch on the far side (away from the speed dial) could be switched to high or low light sensitivity.

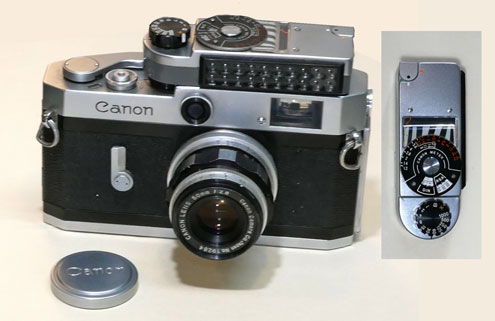

a Canon-Meter mounted on a 1959 Canon P which also had the single shutter speed dial
The Canon-Meter also had two accessories which were described and illustrated by Peter Kitchingman. 12 There was a translucent panel which could slide onto the meter over the selenium cell. This would change the light meter from a reflected light measurement mode to incident light measurement, where the photographer would measure the incident light falling on the scene or face, etc. being photographed.
A second valuable accessory was a booster which could be slipped over the selenium cell, similarly to the incident light panel. This would allow the meter to make light measurements in very low-light situations.

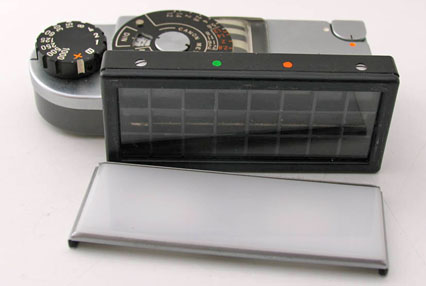

the Canon-Meter booster attachement, with the incident light panel in front of it
this image was posted by Peter Kitchingman on his excellent website 12
The Canon Mirror Box
Mirror box
mirror box

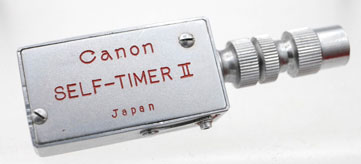

Self-Timer Accessory
For the first time in 1956 with the Canon VT, Canon built-in a self-timer, actuated by a lever on the camera front. For Canons before 1956, Canon offered a self-timer accessory which could be connected to the shutter release.
blah
